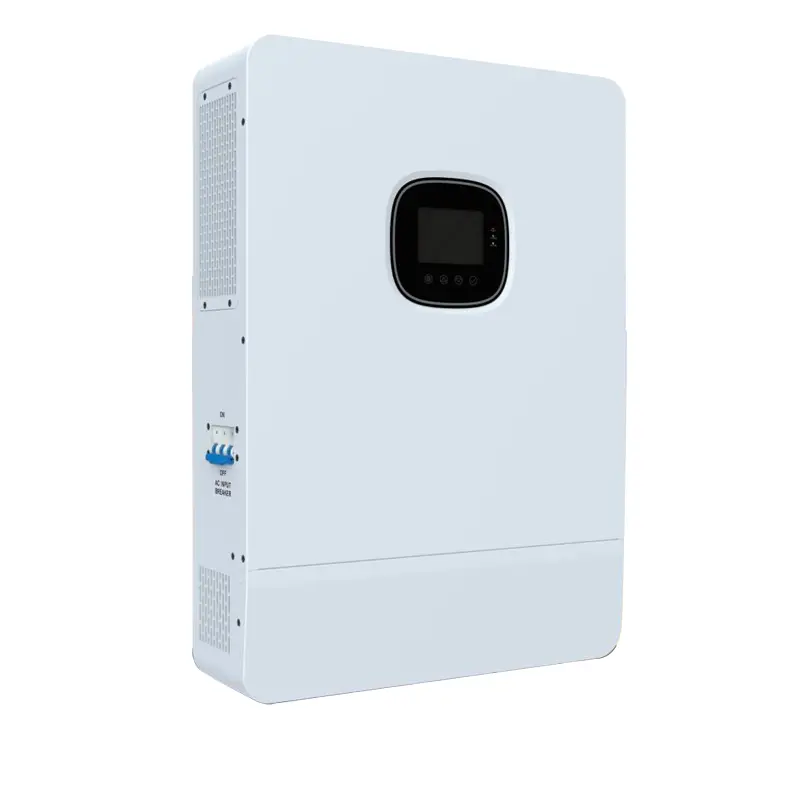

TP Tres-Phase Output Hybrid Photovoltaic PRAECLUSIO Inverter
  • TP Tres-Phase Output Hybrid Photovoltaic PRAECLUSIO Inverter - 0 TP Tres-Phase Output Hybrid Photovoltaic PRAECLUSIO Inverter - 0

TP Tres-Phase Output Hybrid Photovoltaic PRAECLUSIO Inverter

Hoc PT Tres-Phase Output Hybrid Photovoltaic Repono Inverter venditus Daya Electric Group societas est altior-tech, humilis damnum productum. Fundatur in originali producto, novo optimizatione et upgrades peractae, et modus industriae salutaris, modus photovoltaicus limitatus, modus incurrentis hybrid, etc. constitui potest ad usum usoris commodioris experientiae pro clientibus et diversis necessitatibus emptoribus occurrere. Progressionem SPWM technologiam adoptat, divisas emissiones et functiones habet et speciem simplicem et pulchram habet, quae a clientibus favent. Utrum repositio domus sit vel repositio industrialis et commercialis, simul adhiberi potest. Daya Electric Group creare nititur summus tech, summus qualitas novae energiae productorum tibi.

Mitte Inquisitionem

depictio producti

PT tres phase output hybridorum repositionis photovoltaicae inverter divisae functiones et officia emittentes, cum anti-refluenti fabrica instructum est, in MPPT moderatoris aedificatum habet, ac plene digitalem adoptat.

Duplex clausus-loop imperium voltage et vena, SPWM technology provectus, sine unda output purus est. Cum velit resistentia et magna magna lacus, quaevis copia potentiae photovoltaicae

Pugna lithium excitari potest cum fons iungitur, et usus sine batteries sustinet. Energy-salutaris modus apponi potest ad damna nulla onera redigenda. Modus photovoltaicus et prioritas photovoltaica ad libitum sunt.

Habet 4 modos: principales prioritatem et hybrida notantes. Duos modos output habet: mains praeterire et invertere output, et UPS sine interruptibili potentia munus supplere. idoneus

Adhibetur in distributis photovoltaicis, repositis domi industriae, energiae commercialis et aliis inceptis.

Parameter

Product technica parametri
Exemplar PT8K PT10K PT12K
Rated output power 8000W 10000W 12000W
Maximum apicem potestatem 16000W 20000W 24000W
Rated output voltage 400Vac (tres tempus)
Motricium onus facultatem 5 HP 6HP 6HP
Rated frequency 50/60Hz
output waveform pura sine fluctus
mutandi tempus 10ms (Valorem Typicam)
DC parametri altilium
Type altilium Lithium-ion sarcina altilium / plumbum-acidum altilium / consuetudo
Rated altilium voltage 48VDC
voltage range 48VDC-60VDC±0.6VDC
Maxime photovoltaic præcipiens current 180A 220A 260A
Maximum maius / generans currentes præcipiens 100A 120A 120A
Maximum hybrid currentem præcipiens 180A 220A 260A
P. photovoltaic parametri
Numerus MPPT canales 2way
Maximum input potestatem 6000W+6000W 7500W+7500W 9000W+9000W
Maximum initus current 22A+22A
Maximum ambitum aperta intentione 800VDC+800VDC
MPPT operating range voltage 200-600VDC
AC Mains Generator Morbi
Input voltage range voltage170-280Vcable voltage305-485V
Input frequency range 50/60Hz
Bypass fluxus current 63A
Inverter efficientiam
MPPT tracking efficientiam 99.9%
Pugna inverter maximam efficientiam 292%
Modus communicationis
Inaedificata interface RS485/CAN/USB/Drycontact
Moduli externi (libitum) Wi-Fi/GPRS
Basic parametri
productum magnitudine 620* 445* 130mm
productum pondus 27kg
Praesidium campester IP20 solum sustinet amet institutionem
ambientium temperatus -10-55℃,>45℃
sonitus 560dB
Modus refrigerandi aer refrigerationem
